Network Appliance
INA3606
Mainstream 1U Network Security Server with 12th Gen Intel® Core™ Processors (formerly Alder Lake-S) & up to 10 GbE Ports
- 12th Gen Intel® Core™ Processors with PCH R680E
- 2x DDR5 UDIMM 4800MHz (ECC)
- 4x 2.5GbE RJ45 with 1 pair bypass on board
- 2x Gbe SFP ports on board
- Optional NIC slot
- 1x SATA/NVMe M.2
- 1x PCI-E x8 expansion slot

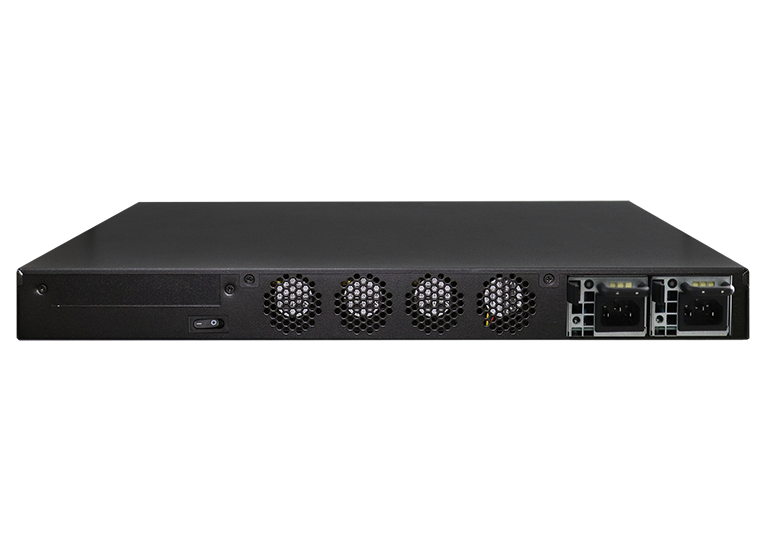

- 600W 1+1 redundant power supply
The INA3606 is a 1U network security server powered by the 12th Gen Intel® Core™ processors. The server is an indispensable component of modern network infrastructure, serving a wide range of applications to protect against threats, optimize performance, and maintain compliance with security and privacy regulations.
The INA3606 appliance offers versatility, making it a vital element in ensuring network reliability and security in an ever-evolving digital landscape. It provides a multitude of network connectivity options, including 4x 2.5GbE RJ45 ports with 1 pair bypass, 2x GbE SFP ports, and an optional NIC slot, enabling efficient data traffic management. With expansion capabilities, including 1x PCI-E Gen5 x8 slot for SSL cards and 1x PCI-E Gen5 x8 slot for IBN modules, as well as storage options like 1x 2.5" HDD/SSD, 1x SATA DOM, and 1x 2280 M.2 slot, the server can be adapted to various network configurations.

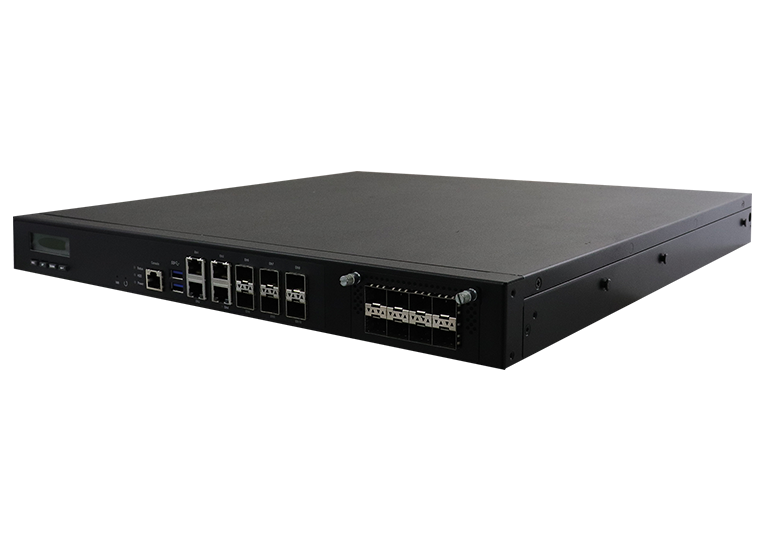

![INA3606 is a 1U network security server powered by the 12th Gen Intel® Core™ processors.](https://www.ibase.com.tw/assets/ContentBuilder/uploads/edit/rjmr8f080122.jpg)
The inclusion of 2x DDR5 UDIMM memory running at 4800MHz ensures swift and reliable data processing. For uninterrupted operation and system reliability, the server come equipped with 600W 1+1 redundant or 500W single power supply.
CPU | LGA1700 Socket for 12th Gen Intel® Core i Processors |
Chipset | Intel® PCH R680E |
Memory | 2x DDR5 UDIMM 4800 MHz, up to 128 GB |
Display | 1x LCM |
Ethernet | 4x 2.5Gbe RJ45 ports (Intel® i226V) 4x 1Gbe SFP ports (Intel® i210IS) 2x 10Gbe SFP+ (Intel® X710) |
Bypass | 1x segment (MCU control) |
Expansion | 1x PCI-E Gen5 x8 (for SSL card) 1x PCI-E Gen5 x8 (for IBN module) |
IPMI | N/A |
Storage | 1x 2.5” HDD/SSD 1x SATA DOM 1x 2280 M.2 slot |
TPM | TPM 2.0 |

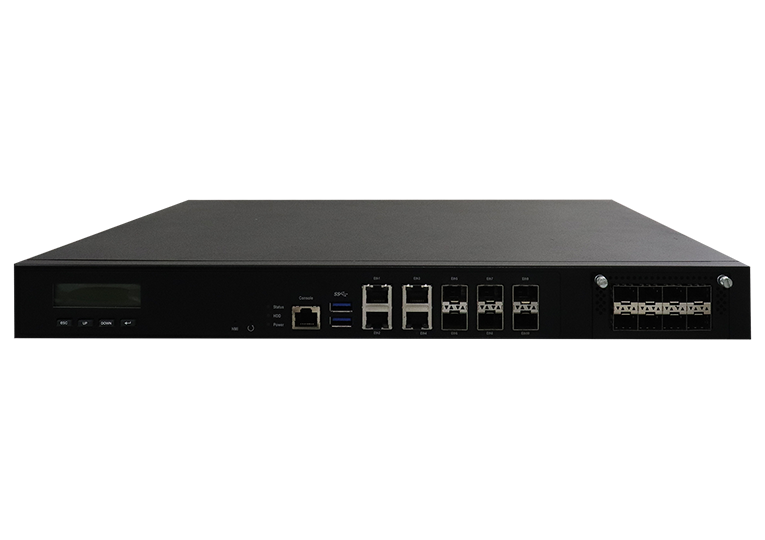

I/O | 1x LCM 3x LED (Status/HDD/Power) 1x RJ45 console 2x USB 3.0 1x Reset button 1x NMI button |

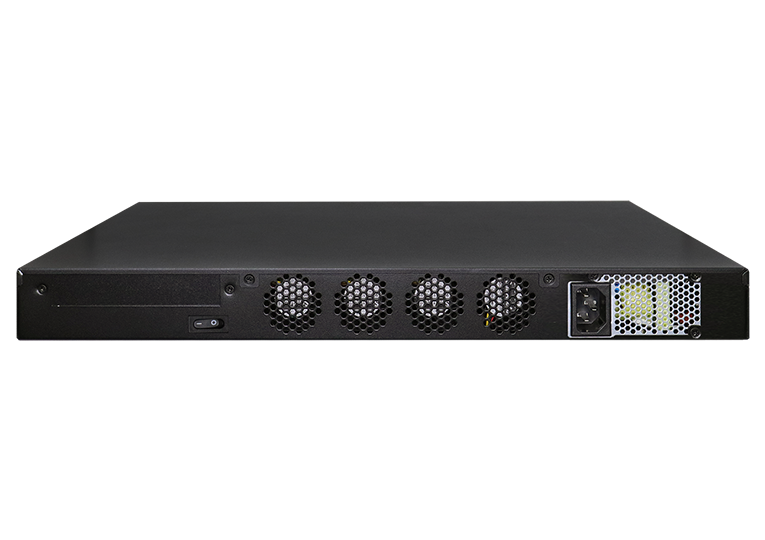

Power Supply | 600W 1+1 Redundant Power Supply 500W Single Power Supply |
Dimensions | 438(W) x 420(D) x 44(H) mm ± 0.3mm |
Weight | N/A |
Operating Temperature | 0°C~ 50°C |
Storage Temperature | -20° ~ 70°C |
Operating Humidity | 10% ~ 90% |
Certification | CE/FCC |
INA3606 | 1U Rackmount Appliance, MBN3608, 12th Gen Intel® Core i, R680E PCH, 2x DDR5 UDIMM, 600W RPSU Barebone without CPU/RAM/HDD/IBN Card/SSL Card |
