Intelligent System

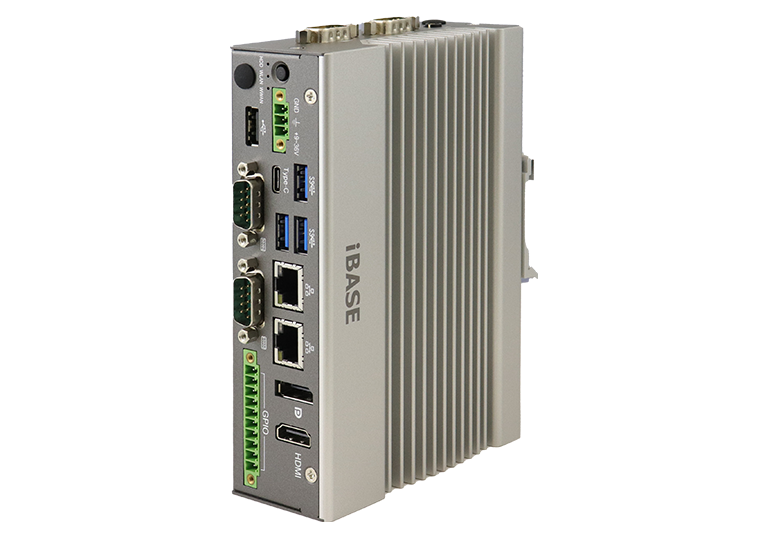

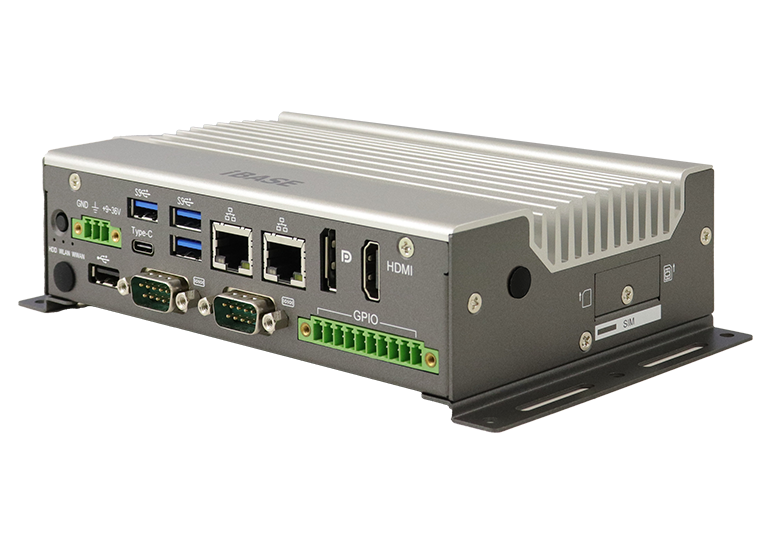

AGS104T
Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7433RE/x7211RE Processors
- Fanless system with IBASE MBE104T proprietary board
- Intel® Atom® x7433RE/x7211RE Processors (Amston Lake platform)
- HDMI & DisplayPort, USB Type-C (For DP & USB 3.2), GPIO 4-in/4-out
- 1x M.2 B-Key 3052, supports 5G/4G/LTE module
- 1x M.2 E-Key 2230, supports WiFi/BT, 1x full-size Mini PCI-E for mSATA
- 2x 2.5G LAN port, 3x USB 3.2, 1x USB 2.0, 4x COM (RS232/422/485)
- 9V~36V DC wide-range power input
- Supports over/under/reverse voltage protection
- Wide-range operating temperature from -40°C to 70°C
- Supports DIN-rail mount, wall mount & TPM 2.0
Powered by Intel® Atom® x7433RE and x7211RE processors (formerly Amston Lake), the AGS104T fanless gateway computer is purpose-built for demanding industrial environments with an extended operating temperature range of -40°C to 70°C, making it a perfect choice for critical IoT deployments.
The AGS104T offers significant enhancements over its predecessors, with support for up to 16GB of DDR5-4800 memory, dual 2.5G Ethernet ports, versatile COM ports (RS232/422/485), and expansion options via M.2 and Mini PCI-E slots. To ensure optimal security and reliability, the device is equipped with TPM 2.0, a wide-range 9V~36V DC power input with over/under/reverse voltage protection, and GPIO 4-in/4-out for additional control functions, catering to the growing and complex requirements of modern IoT infrastructures.
The compact AGS104T is engineered for installation flexibility, supporting both DIN-rail and wall-mount configurations. It offers an extensive range of I/O interfaces, including HDMI, DisplayPort, and USB 3.2, making it suitable for diverse industrial settings.
| System Mainboard | MBE104T |
| CPU Type | Intel® Atom® x7433RE (4-Core, 1.5GHz/2.7GHz, 2MB cache, 9W TDP) Intel® Atom® x7211RE (2-Core, 1.0GHz/2.9GHz, 2MB cache, 6W TDP) |
| System Speed | Up to 2.9GHz |
| Memory | 1x DDR5-4800 SO-DIMM, Max. 16GB |

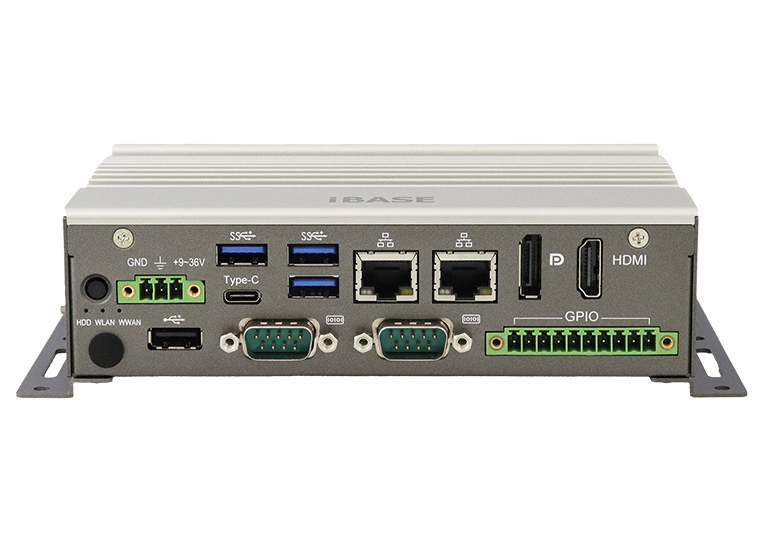

| Rear Panel External I/O | 1x DisplayPort + 1x HDMI 3x USB 3.2 ports, 1x USB 3.2(Type-C), 1x USB 2.0 port 2x RJ45 2.5G Ethernet port 3x LED indicators (HDD, WLAN, WWAN) 1x power button with Green LED 1x 3-pin DC-in terminal block for 9V-36V 1x Antenna hole 2x RS232/422/485 ports for COM#3/COM#4 1x 4-in & 4-out GPIO with isolation |
| Left Panel External I/O | 2x RS232/422/485 ports for COM#1/COM#2 1x Antenna hole 1x Line-out/ Mic-in |
| Right Panel External I/O | Dual SIM card slots with cover 1x Antenna hole |
| Expansion Slots | 1x Full-size Mini PCI-E socket (SATA) 1x 2230 M.2 E-Key socket (USB 2.0 + PCI-E) 1x 3052 M.2 B-Key socket (USB 3.2 + PCI-E + SATA) |
| Storage | 1x Mini PCI-E socket mSATA SSD (Optional) 1x M.2 B-Key for SATA SSD |
| Construction | Aluminum + SGCC |
| Chassis Color | Silver & Gray |

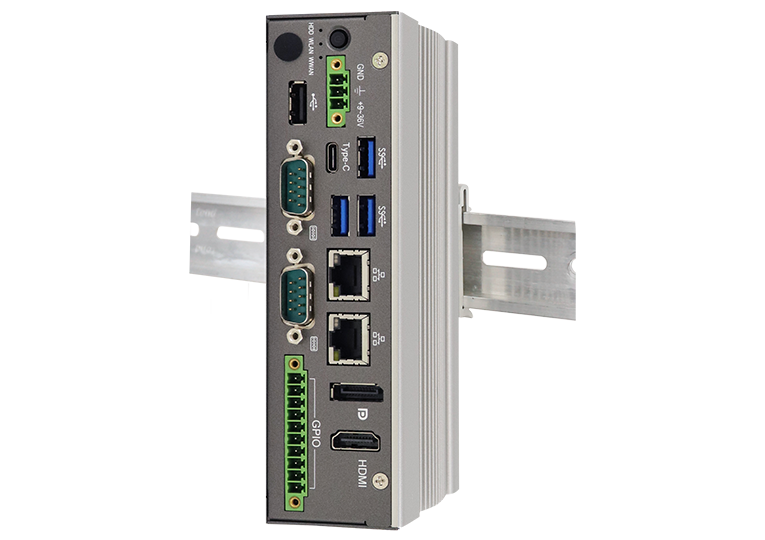

| Mounting | DIN-rail mounting (DIN-rail mount kit included) Desktop or wall mounting (wall mount kit included) |
| Dimensions | 160mm(W) x 110mm(D) x 44mm(H) 6.3”(W) x 4.33”(D) x 1.73”(H) |
| Weight | 1.0kg |
| Operating Temperature | -40°C~70°C (-40°F~158°F) |
| Storage Temperature | -50°C ~ 80°C (-58°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Operating: 0.5Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz |
| Shock | Operating: 30G/11 ms Duration Non-operating: 40G/11 ms Duration |
| Certification | CE/ FCC Class B/ LVD |
| Operating Systems | Win10 and Linux Ubuntu |
| AGS104T-7433 | Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7433RE, 2x 2.5G Ethernet, 4x COM, with industrial-grade 16GB DDR5 memory + 128GB mSATA SSD, w/o power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2) |
| AGS104T-7433M | Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7433RE, 2x 2.5G Ethernet, 4x COM, w/o memory, storage, power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2) |
| AGS104T-7211-8G | Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7211RE, 2x 2.5G Ethernet, 4x COM, with industrial-grade 8GB DDR5 memory + 128GB mSATA SSD, w/o power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2) |
| AGS104T-7211M | Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ Processor x7211RE, 2x 2.5G Ethernet, 4x COM, w/o memory, storage, power adaptor, w/ Wall-mount & Din-rail brackets (RoHS2) |
| DATASHEETS | AGS104T |
