MI1002

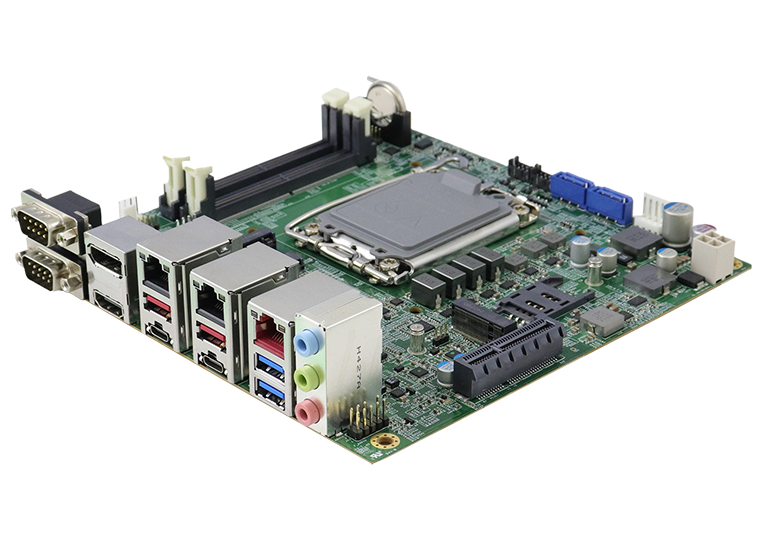

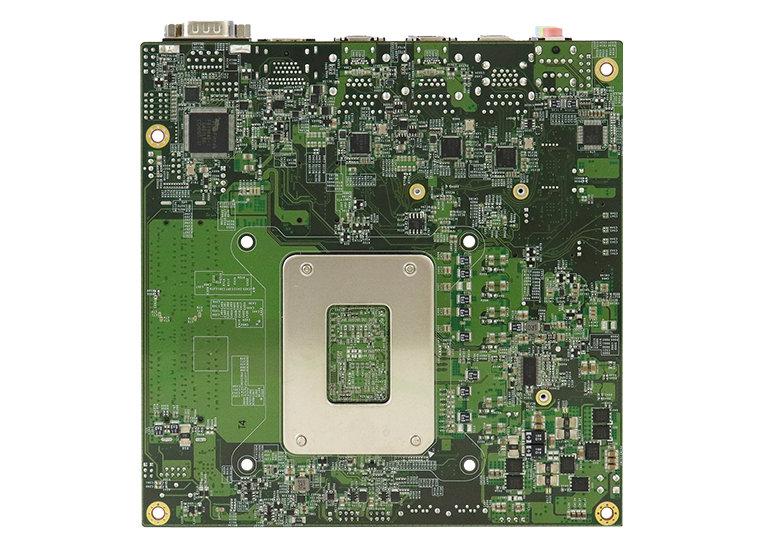

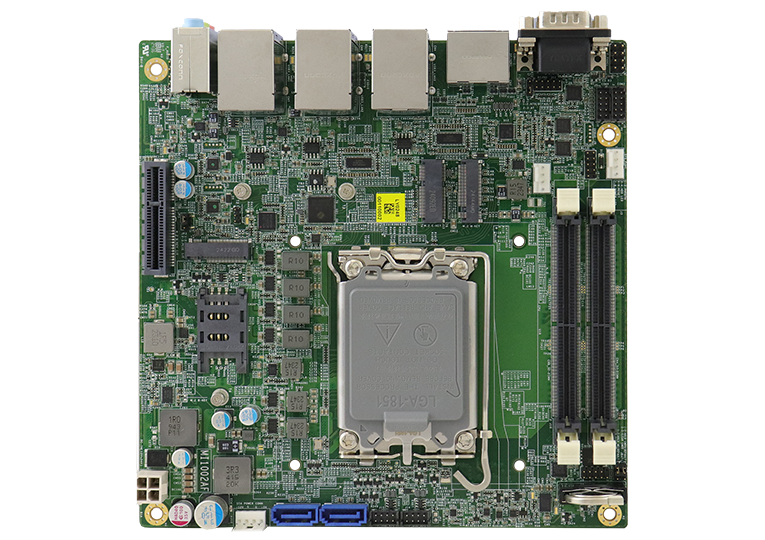

Intel® Core™ Ultra DT Processors (Meteor Lake-PS Platform) Mini-ITX Motherboard

Intel® Core™ Ultra processors (Meteor Lake-PS)
2x DDR5 SO-DIMM, Max. 64GB
Supports HDMI, DisplayPort(DP++), 2x Type-C
1x Intel® I226LM 2.5G LAN, 2x Intel® I226V 2.5G LAN
4x USB 3.2, 2x USB Type-C, 4x USB 2.0, 4x COM, 2x SATA III
1x PCI-E (x4), 3x M.2 (M-Key + E-Key + B-Key)
Supports 5G & watchdog timer, Digital I/O, iAMT (18.0), TPM (2.0)
12V~24V DC input

Product Detail
Specification
Ordering Information
Download

The MI1002 is a Mini-ITX motherboard powered by the latest Intel® Core™ Ultra processors Series 1 (Meteor Lake-PS platform) with an LGA1851 socket. The new platform provides advanced AI capabilities, enhanced graphics, and remarkable energy efficiency, enabling the MI1002 to handle complex tasks effortlessly, whether deploying AI applications, managing edge computing, or driving IoT solutions.

The MI1002 is available in two variants, MI1002AF and MI1002AF-1, both equipped with two DDR5 memory sockets, multiple M.2 slots for ultra-fast storage and 5G connectivity, and dual 2.5G LAN ports for high-speed networking. The MI1002AF includes support for Intel® iAMT 18.0 and dTPM 2.0, which are essential for enhanced security and remote management capabilities. The MI1002AF-1, on the other hand, is equipped with fTPM 2.0, providing a more cost-effective solution for applications where Intel® iAMT is not required.

The motherboard features 12V~24V DC input, boosting flexibility and stability in power management across various operational environments and suitable for industrial applications where power sources can vary significantly. It offers a comprehensive range of I/O options and expansion capabilities, along with HDMI, DisplayPort, and Type-C ports to accommodate diverse display configurations. With these features, the MI1002 series provides a versatile and scalable solution for a wide array of embedded computing applications, ensuring that users can adapt to rapidly evolving technological demands.

CPU Socket	LGA1851
CPU	Intel® Core™ Ultra Processor for SoC
PCH	N/A
Memory	2x DDR5 SO-DIMM, Max. 64GB, Non-ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	M.2 SSD (M2280 for NVMe)
Expansion Slots	1x PCI-E (x4)
Mini Type Slots	1x M.2 (M-Key, Type:2280, supports NVMe) 1x M.2 (E-Key, Type:2230, supports CNVi) 1x M.2 (B-Key, Type:3052, supports 5G/LTE
Graphics Controller	Intel® Core™ Ultra Processor integrated Iris® Xe graphics

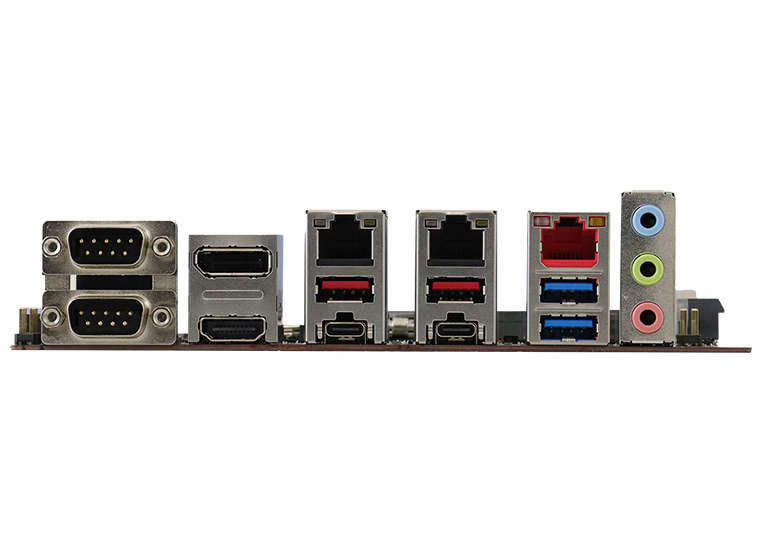

Video Output	HDMI, DisplayPort, 2x Type-C
Ethernet	Intel® I226LM as 1st LAN, I226V as 2nd and 3rd LAN
I/O Chip	Fintek F81964D-I on board
Serial Port	COM1/COM2 (RS232/422/485); COM3/COM4 (RS232 only)
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	6x USB 3.2 (4x Type-A+ 2x Type-C)
Serial ATA	2x SATA III
Audio	HDA controller + Realtek codec ALC888S-VD2
TPM	dTPM, fTPM is option
Others	Digital I/O (4-in/4-out); RAID, iAMT(18.0), +12V~+24V DC-in
Dimensions (L X W)	170mm x 170mm
Power Consumption	TBD
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing @60°C)

MI1002AF	LGA1851 MiniITX Motherboard w/ HDMI, DisplayPort, 2x Type-C, 3x 2.5GbE, 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230/B3052), supports iAMT(18.0) & dTPM(2.0), DC-in (12V~24V)
MI1002AF-1	LGA1851 MiniITX Motherboard w/ HDMI, DisplayPort, 2x Type-C, 3x 2.5GbE, 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230/B3052), supports iAMT(18.0) & fTPM(2.0), DC-in (12V~24V)
