Embedded Computing
MB990
7th/6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® with Intel® Q170 PCH
- 7th/6th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® QC/DC processors, up to 4.0GHz
- 4x DDR4 DIMM, Max. 64GB, ECC compatible
- Intel® processor integrated graphics supports DVI-D, HDMI and DisplayPort
- Dual Intel® Gigabit LAN
- 4x USB 2.0, 10x USB 3.0, 6x COM, 6x SATA III
- 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], 1x PCI-E(x4) [(x1) Link], 1x PCI-E(x1), 3x PCI
- 1x Mini PCI-E
- Watchdog timer, Digital I/O, iAMT(11.0), TPM(1.2), vPro, iSMART

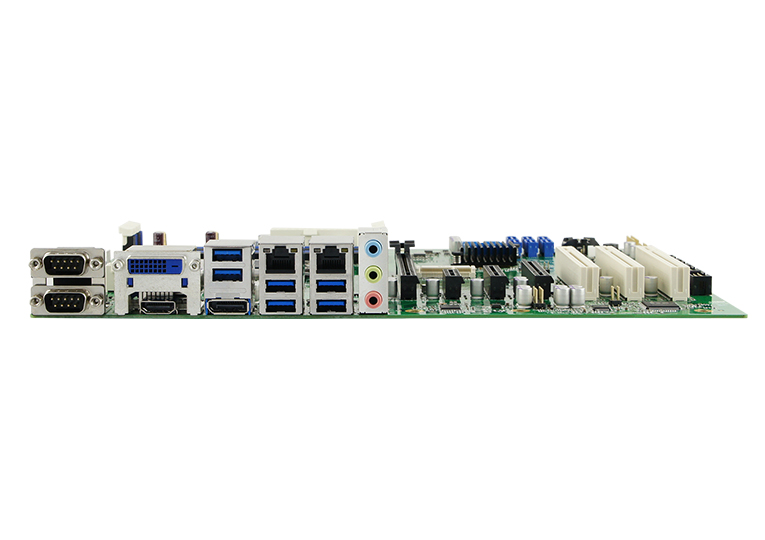

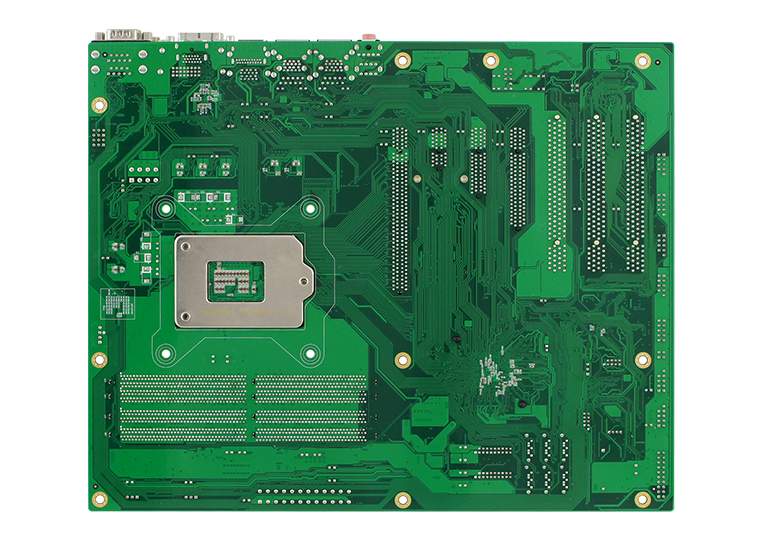

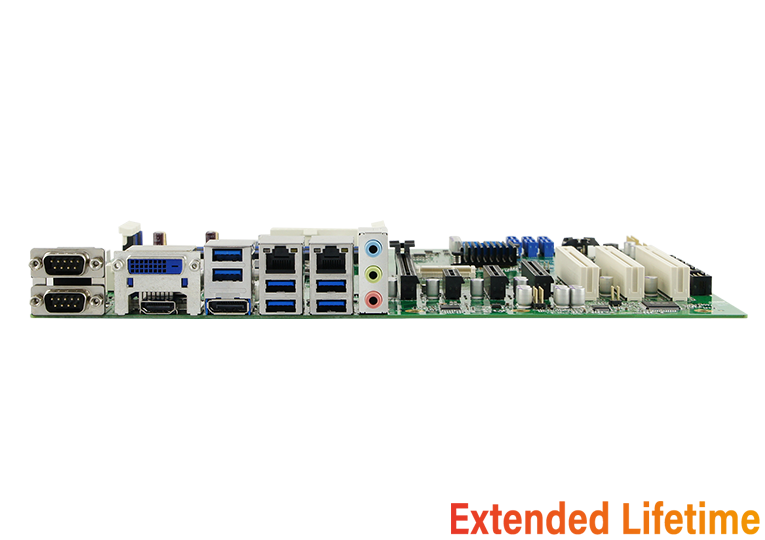

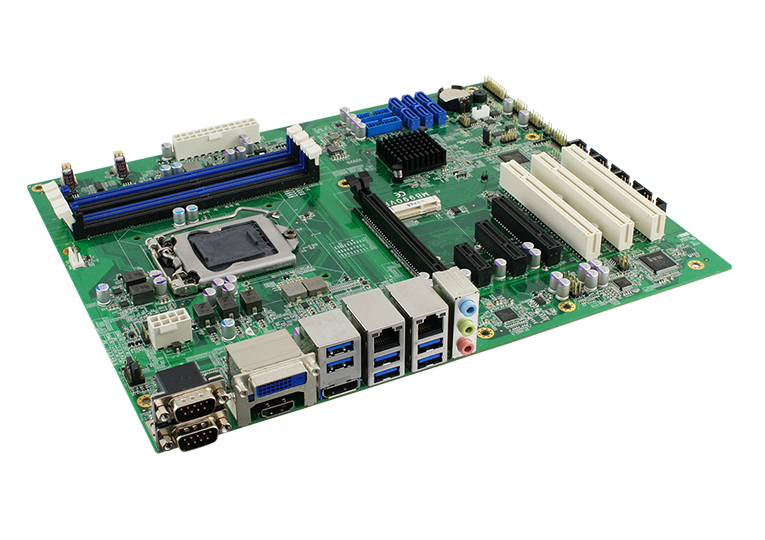

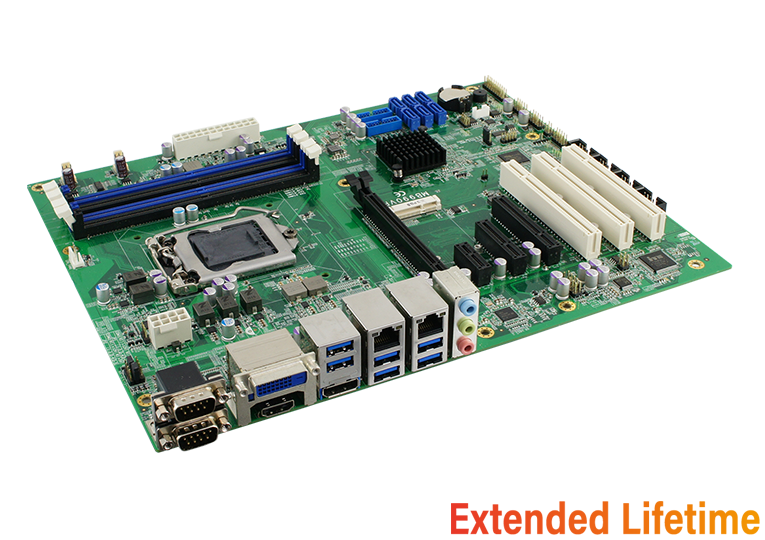

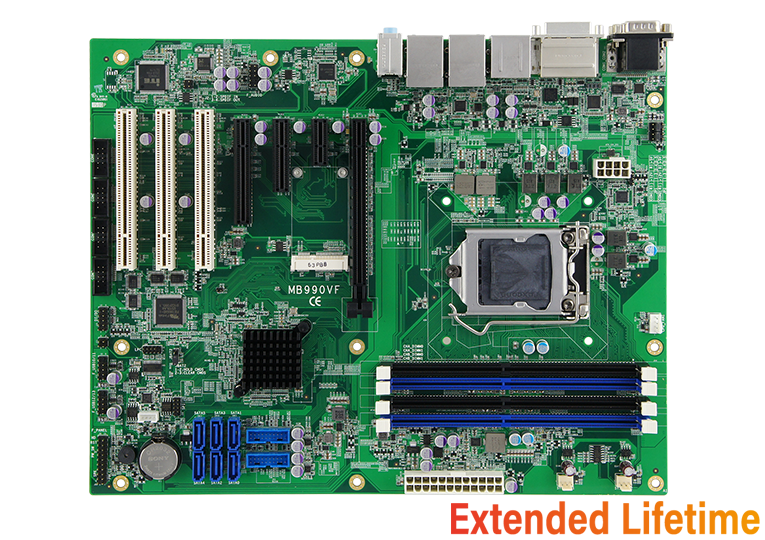

The MB990 ATX motherboard supports Intel's newest 7th/6th Gen Intel® Core™ processors. It features LGA1151 socket for 7th/6th Gen Intel® Core™, Pentium or Celeron processors based on the code-named “Skylake-S” micro-architecture. The motherboard supports four DDR4 DIMM slots for up to 64GB of memory, four USB 2.0, ten USB 3.0, six COM and six SATA III ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.
Equipped with a wide variety of expansion options including PCI-E(x16), PCI-E(x8), PCI-E(x4), PCI-E(x1), Mini PCIe and three PCI slots, MB990 is best suited for IoT, industrial, digital signage, medical, retail and factory automation applications. The platform comes with two Gigabit Ethernet controllers and supports digital I/O, RAID, TPM 1.2 and iAMT 11.0. The board also has advanced iSMART environmental features that enable power on/off scheduling, power resume and full power down functions.
| CPU Socket | LGA1151 |
| CPU | 7th/6th Gen Intel® Core™ i7/i5/i3/ Pentium® / Celeron® QC/ DC processors, up to 4.0GHz |
| PCH | Intel® Q170 PCH |
| Memory | 4x DDR4 DIMM, Max. 64GB (supports ECC by CPU SKUs) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 1x PCI-E (x16), 1x PCI-E (x8), 1x PCI-E (x4), 1x PCI-E (x1), 3x PCI |
| Mini Type Slots | 1x Mini PCI-E |
| Graphics Controller | 7th/6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® QC/ DC processors integrated |
| Video Output | Supports DVI-D, HDMI and DisplayPort |
| Ethernet | MB990VF: Intel® I219LM Gigabit LAN PHY Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN) |
| I/O Chip | Fintek F81866AD-I |
| Serial Port | 5x RS232, 1x RS232/422/485 (jumper-less selection) |
| USB 2.0 | 4x USB 2.0 via pin-header |
| USB 3.X | 10x USB 3.0 6 ports on board 4 ports via pin-header |
| Serial ATA | 6x SATA II |
| Audio | Intel® Q170 PCH built-in HD audio + Realtek ALC888S codec |
| TPM | TPM (1.2) |
| Others | Digital I/O (4-in/4-out), RAID, iAMT (11.0), iSMART |
| Dimensions (L X W) | 305mm x 244mm (12" x 9.6") |
| Power Consumption | Intel® Core™ i7-6700 3.4GHz w/ 4x 4GB DDR4-2133 +12V: 7.12A ; +5V: 1.99A; +5VSB: 0.15A; +3.3V: 0.43A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| MB990VFS-A | LGA1151 Q170 ATX motherboard w/ DVI-D, HDMI, DisplayPort, dual Gigabit LAN, RAID, iAMT (11.0), TPM (1.2), vPro, iSMART |
| DATASHEETS | MB990 |
| CATALOGS | Embedded Computing (Vol.23) |
| USER'S MANUALS | MB990 V1.0 |
| DRIVERS - BOARDS | MB990 Driver DVD |
