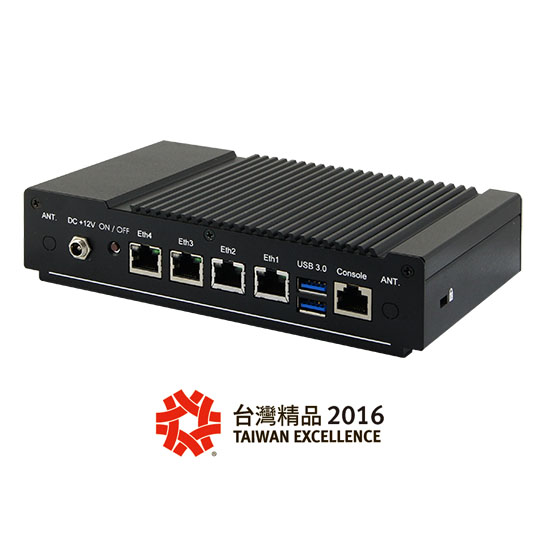

FWA5104 RELIABLE FANLESS NETWORK COMMUNICATION SYSTEM

2016 Taiwan Excellence Award winner, the FWA5104, is powered by latest Generation AMD G-Series SOC (Crown Eagle) in a compact, small, energy-efficient system. The platform supports quad-core processing performance and four high-speed Gigabit Ethernet ports, as well has fast PCIe interface for significantly enhanced wireless communications module connections, making it suitable for Internet of Things (IoT) applications. Even when integrated with a specially design mounting kit for industrial use, FWA5104 maintains its 42mm height, which meets 1U mechanical specifications. FWA5104 features industry-leading innovation in combining four standard RJ-45 network port, console interface, three standard USB interface, optional DisplayPort, 802.11N + Bluetooth 4.0 antenna, standard CFAST card slot, a standard 2.5-inch disk-size storage, and Kingstone Lock security architecture at the bottom of its B6 paper-size enclosure, thus making it fit to be use as an industrial Internet of Things (IoT) node controller.

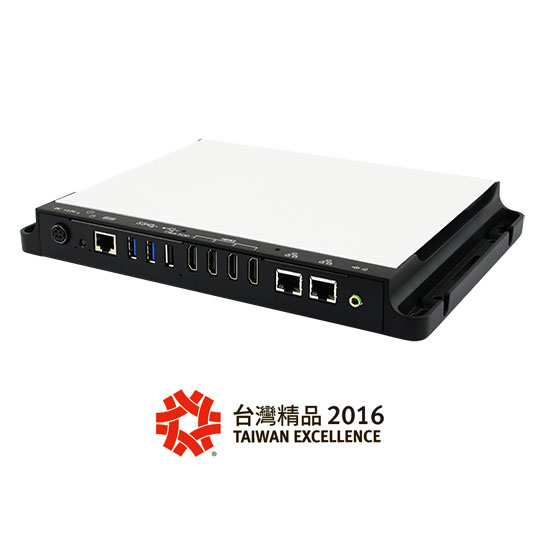

SI-304 4x4K DIGITAL SIGNAGE PLAYER WITH 4 DISPLAY OUTPUTS

2016 Taiwan Excellence Award winner, the SI-304, is an ultra-slim embedded 4x4K digital signage player that provides four independent 4K ultra-high-resolution displays, simultaneously supporting four independent audio outputs. It is the ideal advertising tool for multi-screen TV wall promotion. SI-304 is integrated with IBASE unique iSMART intelligent energy-saving that allow users to operate remotely or through the internet to enable advanced functions such as auto power on/off scheduling, power resume, low temperature guardian and intelligent system recovery. Independent thermal design of the SI-304 prevents dust and contaminants from disrupting the electronics due to rise in system temperature in order to ensure the digital player’s optimum operation, stability and reliability.

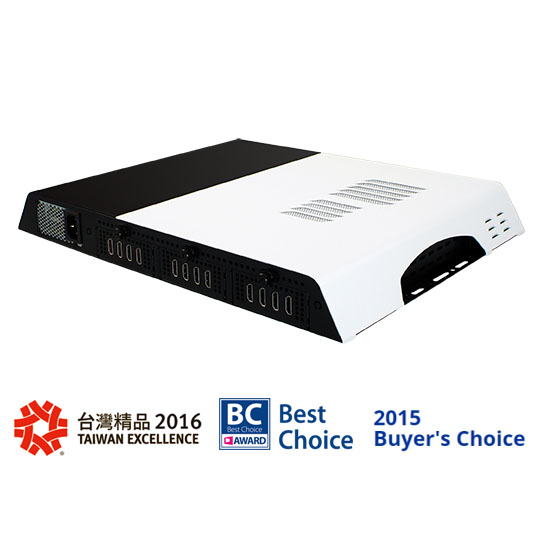

SI-60E EXTREME PERFORMANCE 8K DIGITAL SIGNAGE PLAYER WITH 12 HDMI

2016 Taiwan Excellence Award and 2015 Best Choice Award winner, the SI-60E, is an innovative 8K digital signage player built specifically for multi-screen video wall display applications. Packed with a 4th Gen. Intel Core i7 processor and the latest AMD E8860 GPU, it supports up to 12 display outputs featuring EDID emulation and Eyefinity function. This aesthetically designed player offers awesome 3D graphics performance with resolutions up to 7680 x 3600. To enhance system stability and ensure long term reliability with minimum acoustic footprint, the cooling airflow is segregated from the electronics to keep contaminants out.

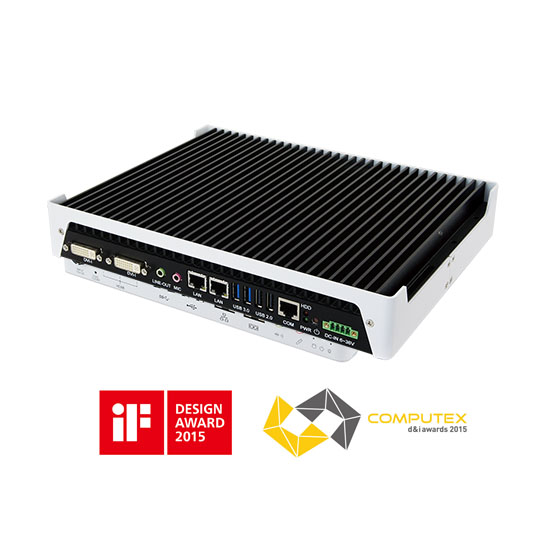

SE-92 OUTDOOR ROBUST DIGITAL SIGNAGE PLAYER

2015 iF Design Award and Computex d&i awards winner, the SE-92, is a ruggedized fanless system built specifically for outdoor and in-vehicle applications. Packed with the latest 5th Generation Intel Core i7 processor, it supports wide-temperature operation ranging from -40 °C to 75 °C, making it ideal for harsh-environment applications. With an all solid-state design, the system is built around an aluminum thermal frame that serves simultaneously as the entire system’s structural backbone, thermal conduit, airflow divider, EMI shield and mounting bracket for easy installation. Not only is the SE-92 made with reliability and practical functions in mind, it also comes with an esthetic design.

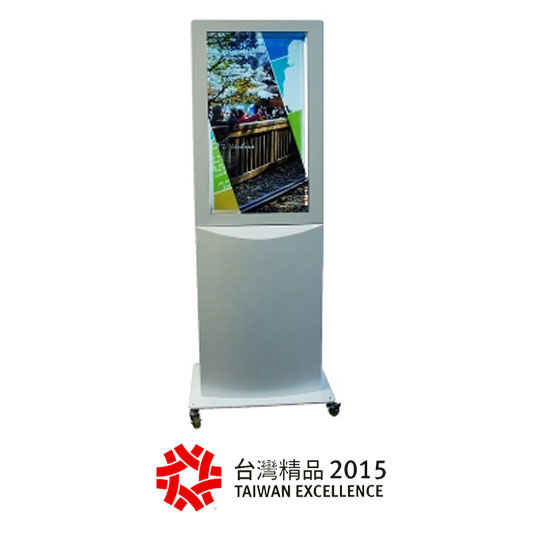

ARTSI-32TM TRANSPARENT DOUBLE-SCREEN DIGITAL SIGNAGE SYSTEM

2015 Taiwan Excellence Award winner, the ARTSI-32TM, is an innovative 32-inch transparent double-screen digital signage display system that features two tiers of distinct Full HD class 3D image displays. It is not equipped with any 3D hardware device, yet it can produce attractive 3D visual effects, and can be a very good marketing and promotion tool. This product has multi-screen display technology patent applications. The sample product to be displayed is to be placed inside the box, which has a transparent LCD screen in front that does not obstruct the item and at the back is an LCD display with regular brightness. The arrangement allows the product sample in the middle to be viewed from different perspective, completely free of the item’s shadow. The outer transparent LCD screen and the inner normal-brightness LCD screen display’s synchronized video content can be managed to give a smooth presentation of the sample product. The viewer is able to see the outer LCD screen image, the sample product itself, and also the image of the rear LCD screen. Together, they project special visual effects with 3D depth of the merchandise displayed.

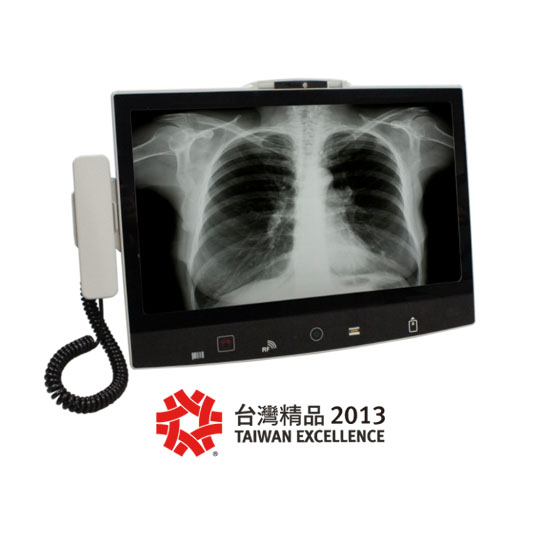

BST-1850 MULTI-TOUCH BEDSIDE TERMINAL

2013 Taiwan Excellence Award winner, the BST-1850 Multi-touch Bedside Terminal, is a multifunctional slim 18.5” panel PC designed especially for bedside medical care applications. The system provides nursing care, real-time clinical data, medical records management and multiple infotainment functions. BST-1850 comes with a capacitive multi-touch panel that is built in with an iPhone-level functionality in one body. It supports various I/O functions for webcam, speakers, card reader and RFID, as well as other peripherals based on customer’s demand. This panel PC can also be used as a patient leisure infotainment system.

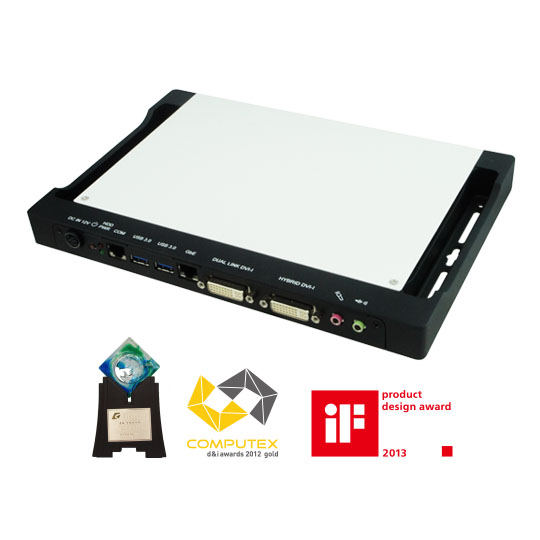

SI-38 DIGITAL SIGNAGE SYSTEM

2012 Computex Taipei design & innovation Gold Award, Industrial Innovation Achievement Award and 2013 iF Product Design award winner, the SI-38, is an ultra slim embedded system designed specifically for digital signage applications. Packing a fusion processor with discrete class graphics and multiple display outputs, its 25mm thick chassis is nevertheless slender enough to disappear into the tightest spaces behind displays. The system is built around a die-cast aluminum thermal frame that serves simultaneously as the entire system’s structural backbone, thermal conduit, airflow divider, HDD rail, EMI shield and mounting bracket. To ensure long term reliability with a minimum acoustic footprint, the cooling airflow is segregated from the electronics to keep contaminants out.


2012 Computex Taipei design & innovation Gold Award

 Jury’s Opinion: “The entire jury, myself included, was happy to see design attention being paid to this quite utilitarian back-room product. The design team responsible realized that attention to design would help communicate a point of view that this company cares about its users. The design was quite well executed.”

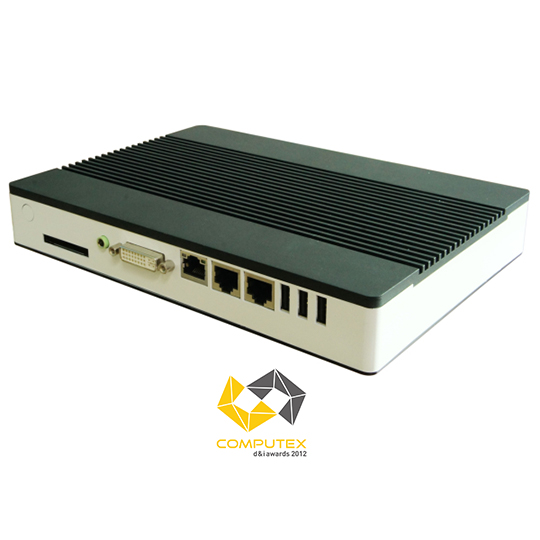

AFB100 EFLEX PLATFORM

2012 Computex Taipei design & innovation Award winner, the AFB100, is a highly compact yet expandable fanless platform for embedded computing. It is the first system built on the eFlex Platform. eFlex systems offer a unique set of attributes that allow a single machine to accommodate a vast range of embedded application. eFlex system comprises three core component sets – eFlex mainboards, enclosures and expansion boards. It utilizes non-proprietary ExpressCard, mSATA and MiniPCIe expansion cards to facilitate expansion and customization. The low profile (30mm) eFlex enclosures are mechanically interchangeable between eFlex mainboards. They feature standardized I/O bays and plates.

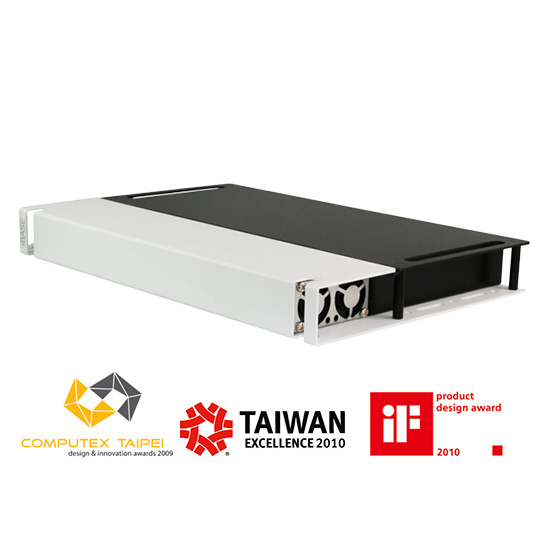

SI-24S DIGITAL SIGNAGE SYSTEM

2009 Computex Taipei design & innovation Gold Award, 2010 iF product design awrad and 2010 Taiwan Excellence Award winners, the SI-24S, is an ultra slim embedded system tailored for Digital Signage Applications. It combines the graphics performance of an ATI E2400 GPU with 128MB of dedicated GDDR3 video memory and the efficient computing resources of an AMD Dual-Core CPU. The low power, energy saving SI-24S supports dual High Definition independent displays with DVI-I interfaces. A segregated flow thermal solution prevents the accumulation of contaminants on the system’s electronics, and dual maglev fans provides for worry-free 24/7 operation over extended durations. The chassis is designed with mounting brackets for easy installation. Dimensions of the unit are 260mm(W)x175mm(D)x30mm(H).
